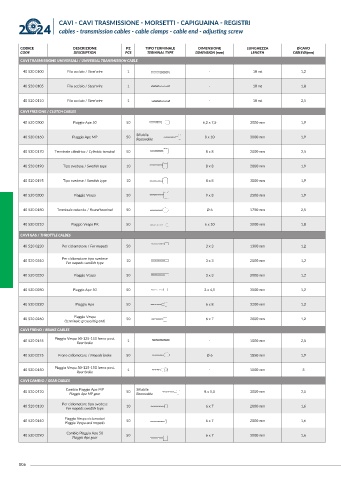

4 CAVI - CAVI TRASMISSIONE - MORSETTI - CAPIGUAINA - REGISTRI
cables - transmission cables - cable clamps - cable end - adjusting screw
CODICE DESCRIZIONE PZ TIPO TERMINALE DIMENSIONE LUNGHEZZA Ø CAVO
CODE DESCRIPTION PCS TERMINAL TYPE DIMENSION (mm) LENGTH CABLE Ø (mm)
CAVI TRASMISSIONE UNIVERSALI / UNIVERSAL TRANSMISSION CABLE
40 520 0100 Filo acciaio / Steel wire 1 - 10 mt 1,2
40 520 0105 Filo acciaio / Steel wire 1 - 10 mt 1,8
40 520 0110 Filo acciaio / Steel wire 1 - 10 mt 2,5
CAVI FRIZIONE / CLUTCH CABLES
40 520 0300 Piaggio Ape 50 50 6,2 x 7,5 3000 mm 1,9
Sfilabile
40 520 0160 Piaggio Ape MP 50 Removable 8 x 10 3000 mm 1,9
40 520 0170 Terminale cilindrico / Cylindric terminal 50 8 x 8 2000 mm 2,5
40 520 0190 Tipo svedese / Swedish type 10 8 x 8 2000 mm 1,9
40 520 0195 Tipo svedese / Swedish type 10 8 x 8 3000 mm 1,9
40 520 0200 Piaggio Vespa 50 9 x 8 2500 mm 1,9
40 520 0180 Terminale rotondo / Round terminal 50 Ø 6 1750 mm 2,5
40 520 0210 Piaggio Vespa PK 50 6 x 10 2000 mm 1,8
CAVI GAS / THROTTLE CALBES
40 520 0230 Per ciclomotore / For mopeds 50 3 x 3 1300 mm 1,2
Per ciclomotore tipo svedese
40 520 0240 For mopeds swedish type 10 3 x 3 2000 mm 1,2
40 520 0250 Piaggio Vespa 50 3 x 3 2000 mm 1,2
40 520 0280 Piaggio Ape 50 50 3 x 4,5 3000 mm 1,2
40 520 0220 Piaggio Ape 50 6 x 8 3200 mm 1,2
40 520 0260 Piaggio Vespa 50 6 x 7 2000 mm 1,2
(terminale grosso/big end)
CAVI FRENO / BRAKE CABLES
Piaggio Vespa 50-125-150 freno post.
40 520 0155 1 - 1000 mm 2,5
Rear brake
40 520 0275 Freno ciclomotore / Mopeds brake 50 Ø 6 1850 mm 1,9
Piaggio Vespa 50-125-150 freno post.
40 520 0150 1 - 1000 mm 3
Rear brake
CAVI CAMBIO / GEAR CABLES
Cambio Piaggio Ape MP Sfilabile
40 520 0120 Piaggio Ape MP gear 50 Removable 8 x 5,5 3000 mm 2,5
40 520 0130 Per ciclomotore tipo svedese 10 6 x 7 2000 mm 1,6
For mopeds swedish type
Piaggio Vespa ciclomotori
40 520 0140 50 6 x 7 2000 mm 1,6
Piaggio Vespa and mopeds
Cambio Piaggio Ape 50
40 520 0290 Piaggio Ape gear 50 6 x 7 3000 mm 1,6
