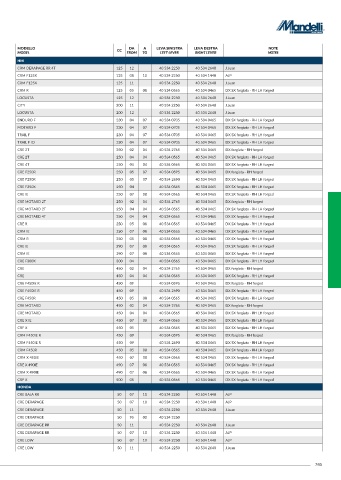

Page 746 - componenti-moto-2024

MODELLO CC DA A LEVA SINISTRA LEVA DESTRA NOTE
MODEL FROM TO LEFT LEVER RIGHT LEVER NOTES
HM
CRM DERAPAGE RR 4T 125 12 40 534 2250 40 534 2640 J.Juan
CRM F125X 125 08 10 40 534 2250 40 534 1440 AJP
CRM F125X 125 11 40 534 2250 40 534 2640 J.Juan
CRM R 125 05 08 40 534 0565 40 534 0465 DX SX forgiata - RH LH forged
LOCUSTA 125 12 40 534 2250 40 534 2640 J.Juan
CITY 200 11 40 534 2250 40 534 2640 J.Juan
LOCUSTA 200 12 40 534 2250 40 534 2640 J.Juan
ENDURO F 230 04 07 40 534 0705 40 534 0465 DX SX forgiata - RH LH forged
MOTARD F 230 04 07 40 534 0705 40 534 0465 DX SX forgiata - RH LH forged
TRAIL F 230 04 07 40 534 0705 40 534 0465 DX SX forgiata - RH LH forged
TRAIL F ID 230 04 07 40 534 0705 40 534 0465 DX SX forgiata - RH LH forged
CRE 2T 250 02 04 40 534 2765 40 534 0465 DX forgiata - RH forged
CRE 2T 250 04 04 40 534 0565 40 534 0465 DX SX forgiata - RH LH forged
CRE 4T 250 04 04 40 534 0565 40 534 0465 DX SX forgiata - RH LH forged
CRE F250R 250 05 07 40 534 0595 40 534 0465 DX forgiata - RH forged
CRE F250R 250 05 07 40 534 2690 40 534 0465 DX SX forgiata - RH LH forged
CRE F250X 250 04 40 534 0565 40 534 0465 DX SX forgiata - RH LH forged
CRE IE 250 07 08 40 534 0565 40 534 0465 DX SX forgiata - RH LH forged
CRE MOTARD 2T 250 02 04 40 534 2765 40 534 0465 DX forgiata - RH forged
CRE MOTARD 2T 250 04 04 40 534 0565 40 534 0465 DX SX forgiata - RH LH forged
CRE MOTARD 4T 250 04 04 40 534 0565 40 534 0465 DX SX forgiata - RH LH forged
CRE R 250 05 08 40 534 0565 40 534 0465 DX SX forgiata - RH LH forged
CRM IE 250 07 08 40 534 0565 40 534 0465 DX SX forgiata - RH LH forged
CRM R 250 05 08 40 534 0565 40 534 0465 DX SX forgiata - RH LH forged
CRE IE 290 07 08 40 534 0565 40 534 0465 DX SX forgiata - RH LH forged
CRM IE 290 07 08 40 534 0565 40 534 0465 DX SX forgiata - RH LH forged
CRE F300X 300 04 40 534 0565 40 534 0465 DX SX forgiata - RH LH forged
CRE 450 02 04 40 534 2765 40 534 0465 DX forgiata - RH forged
CRE 450 04 04 40 534 0565 40 534 0465 DX SX forgiata - RH LH forged
CRE F450IE R 450 09 40 534 0595 40 534 0465 DX forgiata - RH forged
CRE F450IE R 450 09 40 534 2690 40 534 0465 DX SX forgiata - RH LH forged
CRE F450R 450 05 08 40 534 0565 40 534 0465 DX SX forgiata - RH LH forged
CRE MOTARD 450 02 04 40 534 2765 40 534 0465 DX forgiata - RH forged
CRE MOTARD 450 04 04 40 534 0565 40 534 0465 DX SX forgiata - RH LH forged
CRE X IE 450 07 08 40 534 0565 40 534 0465 DX SX forgiata - RH LH forged
CRF X 450 05 40 534 0565 40 534 0465 DX SX forgiata - RH LH forged
CRM F450IE R 450 09 40 534 0595 40 534 0465 DX forgiata - RH forged
CRM F450IE R 450 09 40 534 2690 40 534 0465 DX SX forgiata - RH LH forged
CRM F450R 450 05 08 40 534 0565 40 534 0465 DX SX forgiata - RH LH forged
CRM X 450IE 450 07 08 40 534 0565 40 534 0465 DX SX forgiata - RH LH forged
CRE X 490IE 490 07 08 40 534 0565 40 534 0465 DX SX forgiata - RH LH forged
CRM X 490IE 490 07 08 40 534 0565 40 534 0465 DX SX forgiata - RH LH forged
CRF X 500 05 40 534 0565 40 534 0465 DX SX forgiata - RH LH forged
HONDA
CRE BAJA RR 50 07 10 40 534 2250 40 534 1440 AJP
CRE DERAPAGE 50 07 10 40 534 2250 40 534 1440 AJP
CRE DERAPAGE 50 11 40 534 2250 40 534 2640 J.Juan
CRE DERAPAGE 50 95 00 40 534 2250
CRE DERAPAGE RR 50 11 40 534 2250 40 534 2640 J.Juan
CRE DERAPAGE RR 50 07 10 40 534 2250 40 534 1440 AJP
CRE LOW 50 07 10 40 534 2250 40 534 1440 AJP
CRE LOW 50 11 40 534 2250 40 534 2640 J.Juan

745
