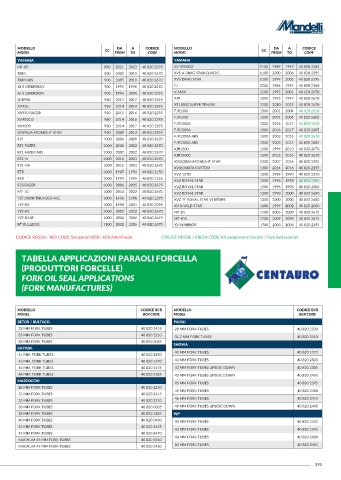

Page 596 - componenti-moto-2024

MODELLO CC DA A CODICE MODELLO CC DA A CODICE
MODEL FROM TO CODE MODEL FROM TO CODE
YAMAHA YAMAHA
MT-09 890 2021 2022 40 820 2295 XV VIRAGO 1100 1989 1997 40 820 2285
TDM 900 2002 2010 40 820 2670 XVS A DRAG STAR CLASSIC 1100 2000 2006 40 820 2295
TDM ABS 900 2005 2010 40 820 2670 XVS DRAG STAR 1100 1999 2002 40 820 2295
XJ S DIVERSION 900 1995 1996 40 820 2150 FJ 1200 1986 1992 40 820 2150
XJ S DIVERSION 900 1996 2001 40 820 2295 V-MAX 1200 1992 2001 40 820 2670
SCR950 950 2017 2017 40 820 2295 XJR 1200 1995 1997 40 820 2670
XV950 950 2014 2014 40 820 2295 XT1200Z SUPER TENERE 1200 2010 2019 40 820 2670
XV950 RACER 950 2015 2016 40 820 2295 FJR1300 1300 2001 2004 40 820 2610
FJR1300 1300 2001 2004 40 820 2605
XV950CU 950 2014 2016 40 820 2295
FJR1300A 1300 2016 2017 40 820 2610
XV950R 950 2014 2017 40 820 2295
XVS950A MIDNIGHT STAR 950 2009 2012 40 820 2295 FJR1300A 1300 2016 2017 40 820 2605
FJR1300A ABS 1300 2003 2015 40 820 2610
FZ1 1000 2006 2009 40 820 2670
FJR1300A ABS 1300 2003 2015 40 820 2605
FZ1 FAZER 1000 2006 2012 40 820 2670
XJR1300 1300 1999 2013 40 820 2670
FZ1 FAZER ABS 1000 2007 2012 40 820 2670
XJR1300C 1300 2015 2016 40 820 2670
FZ1-N 1000 2011 2011 40 820 2670
XVS1300A MIDNIGHT STAR 1300 2007 2016 40 820 2295
FZ1-NA 1000 2010 2011 40 820 2670 XVS1300CU CUSTOM 1300 2014 2016 40 820 2155
FZR 1000 1987 1993 40 820 2150
XVZ 13TD 1300 1989 1990 40 820 2370
FZR 1000 1994 1995 40 820 2155
XVZ ROYAL STAR 1300 1996 1998 40 820 2505
FZS FAZER 1000 2001 2005 40 820 2675 XVZ ROYAL STAR 1300 1996 1998 40 820 2500
MT-10 1000 2016 2022 40 820 2670 XVZ ROYAL STAR 1300 1998 2000 40 820 2680
YZF1000R THUNDER ACE 1000 1996 1998 40 820 2295 XVZ TF ROYAL STAR VENTURE 1300 2000 2000 40 820 2680
YZF-R1 1000 1998 2001 40 820 2295 XV A WILD STAR 1600 1999 2002 40 820 2680
YZF-R1 1000 2002 2022 40 820 2670 MT-01 1700 2005 2009 40 820 2675
YZF-R1SP 1000 2006 2006 40 820 2675 MT-01S 1700 2009 2009 40 820 2675
BT BULLDOG 1100 2002 2006 40 820 2670 XV WARRIOR 1700 2003 2004 40 820 2295

CODICE ROSSO / RED CODE: Set paraoli BCR / BCR fork oil seals CODICE VERDE / GREEN CODE: Kit parapolvere forcella / Fork dust seals set

TABELLA APPLICAZIONI PARAOLI FORCELLA

(PRODUTTORI FORCELLE)
FORK OIL SEAL APPLICATIONS
(FORK MANUFACTURES)

MODELLO CODICE BCR MODELLO CODICE BCR
MODEL BCR CODE MODEL BCR CODE
BETOR / BULTACO PAIOLI
32 MM FORK TUBES 40 820 2415 28 MM FORK TUBES 40 820 2230
35 MM FORK TUBES 40 820 2210 31,7 MM FORK TUBES 40 820 2410
38 MM FORK TUBES 40 820 0085 SHOWA
KAYABA
41 MM. FORK TUBES 40 820 2150 43 MM FORK TUBES 40 820 1375
43 MM. FORK TUBES 40 820 1370 43 MM FORK TUBES 40 820 2500
46 MM. FORK TUBES 40 820 2475 43 MM FORK TUBES UPSIDE DOWN 40 820 2385
48 MM. FORK TUBES 40 820 2585 43 MM FORK TUBES UPSIDE DOWN 40 820 2495
MARZOCCHI 45 MM FORK TUBES 40 820 2395
28 MM FORK TUBES 40 820 2230
45 MM FORK TUBES 40 820 2480
32 MM FORK TUBES 40 820 2415
35 MM FORK TUBES 40 820 2210 46 MM FORK TUBES 40 820 2475
38 MM FORK TUBES 40 820 0085 49 MM FORK TUBES UPSIDE DOWN 40 820 2445
38 MM FORK TUBES 40 820 2285 WP
40 MM FORK TUBES 40 820 0490 40 MM FORK TUBES 40 820 2425
42 MM FORK TUBES 40 820 2435 43 MM FORK TUBES 40 820 2595
45 MM FORK TUBES 40 820 2470
48 MM FORK TUBES 40 820 2600
MAGNUM 45 MM FORK TUBES 40 820 2440
MAGNUM 47 MM FORK TUBES 40 820 2450 50 MM FORK TUBES 40 820 2455
CODICE VERDE / GREEN CODE: Kit parapolvere forcella / Fork dust seals set
595
